Using Simple Tiles to Flip Between Reports

Overview

Users can configure the Selection Bus settings within two Simple Tiles to flip between two designated Reports. This action requires using a Page/Dashboard, the Create Tile Data Step and Report Viewer Control from the Toolbox, and Report IDs from two created Reports.

How to Create a Simple Tile

To create a Simple Tile, create or open an existing Page/Dashboard:

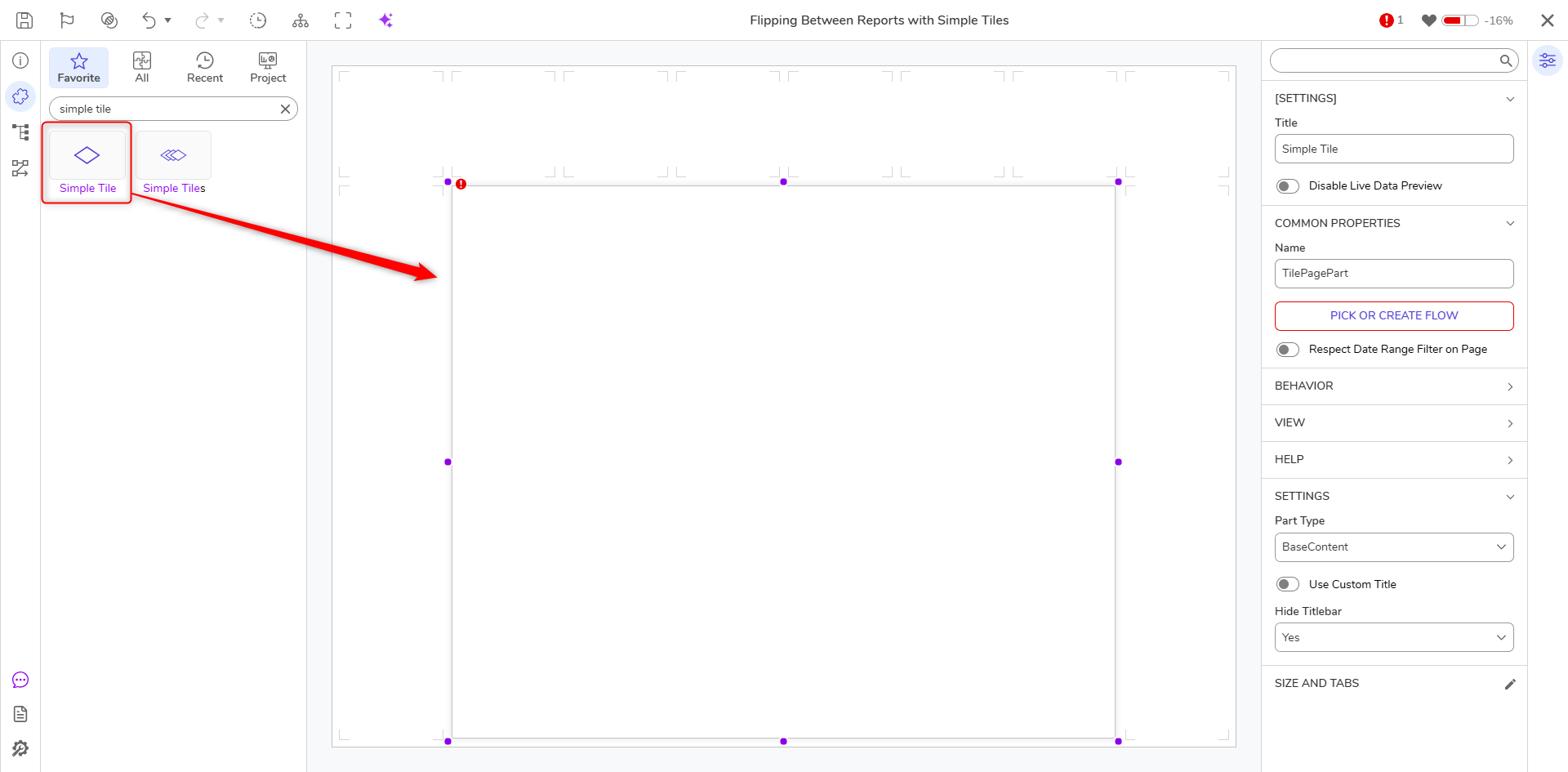

• Search for Simple Tile in the Toolbox and drag it into the Workspace.

For more information on creating Simple Tiles, please refer to Simple Tiles.

Configuring Simple Tiles to Flip Between Two Reports

To configure a Simple Tile to flip between two Reports:

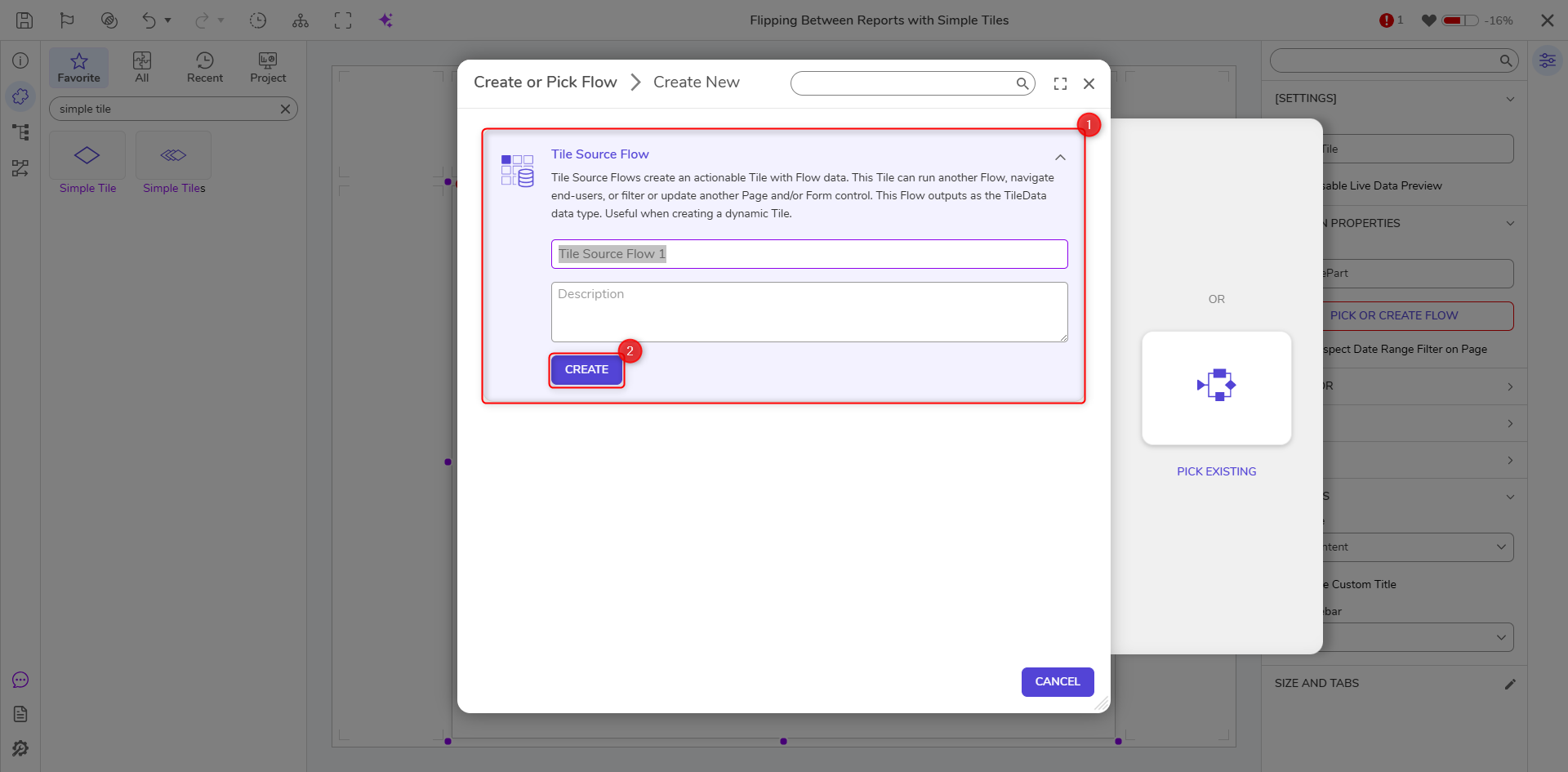

• Select Pick or Create Flow > Create New.
• Name the Tile Source Flow and select Create.

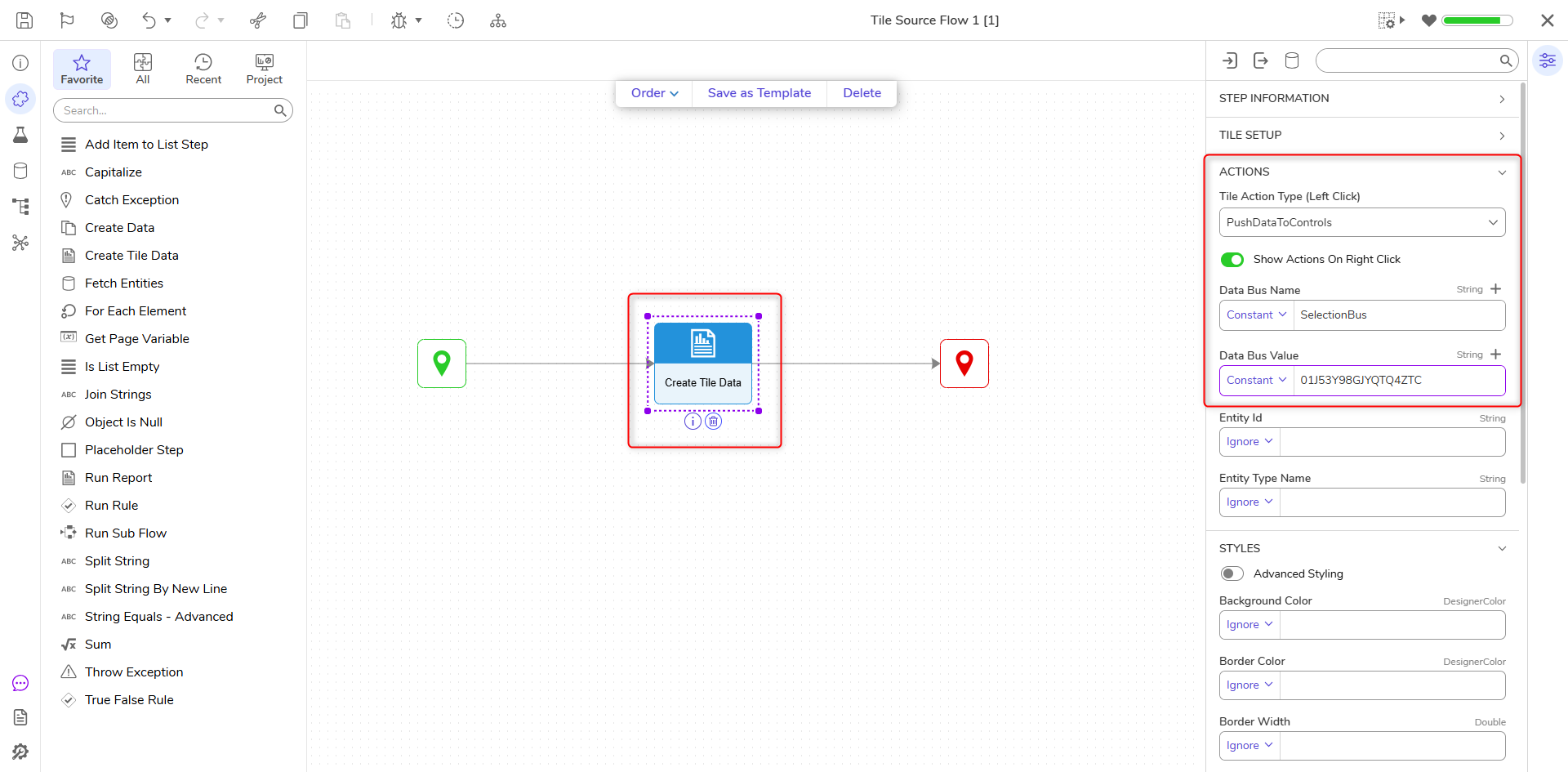

• Select the Create Tile Data Step and scroll down to Actions in the Properties Panel.
  •  In the Tile Action Type (Left Click) Drop-down, select Push Data to Controls.
    • To show actions on right click, check the Show Actions on Right Click check box.
  • This action will populate Data Bus Name and Data Bus Value as two new fields.
  • Type a name in the Data Bus Name field as a Constant Valueand add a value to the Data Bus Value field.
    • The value for the Data Bus Value field is the Report ID that will populate in the Report Viewer.




• To customize the title of a Simple Tile, type in the desired name in the Line 1 field under Tile Setup and select Constant.
• Repeat the above steps to create the next Simple Tile.

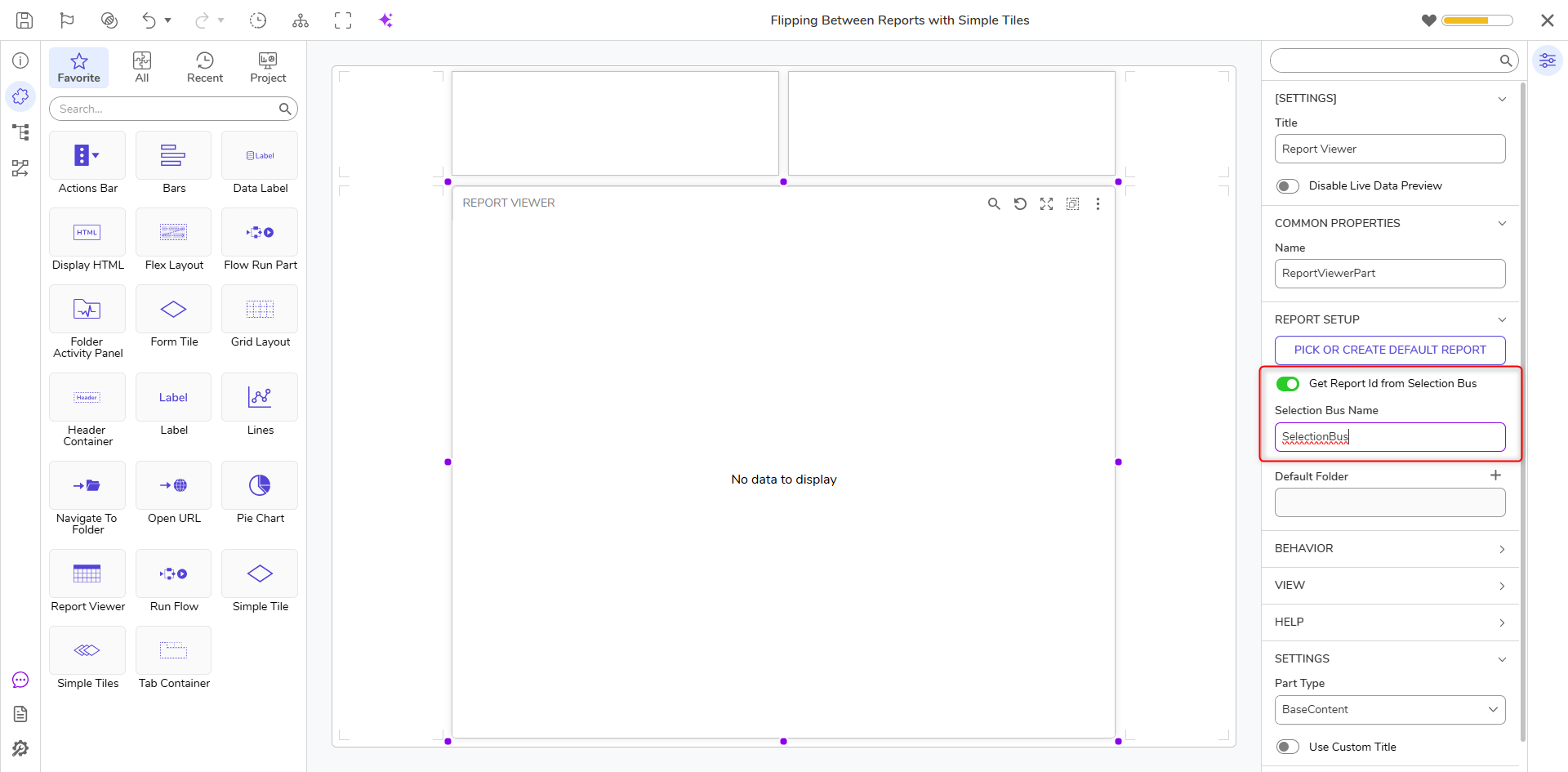

• Once the Simple Tiles have been created, search for a Report Viewer in the Toolbox and drag it onto the Workspace.
  • Select the Report Viewer and check Get Report ID from Selection Bus.
  • Type in the same name of the Selection Bus created in the above steps for both Simple Tiles.

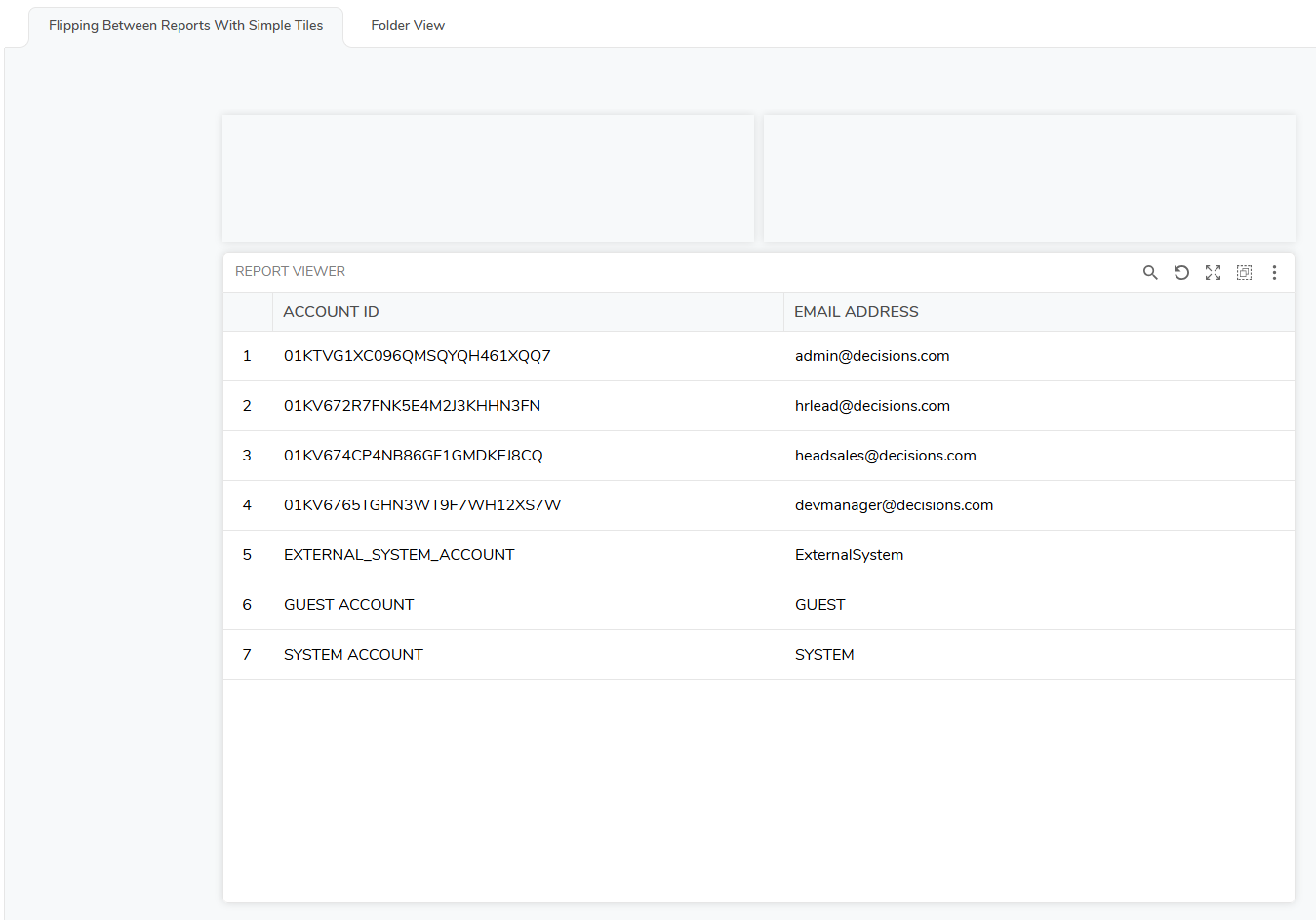

Using Simple Tiles to Flip Between Two Reports on a Dashboard

The following example demonstrates how Simple Tiles with Selection Bus settings enabled can flip between Reports on a Page/Dashboard. A left-click action on both Simple Tiles navigates to the associated reports, and the Reports can be flipped back and forth.

For more information on Changing a Report using Simple Tiles, please visit Changing Report Via Simple Tile.
