Show Form

Article summary

Did you find this summary helpful?

Thank you for your feedback

Step Details
Introduced in Version	4.0.0
Last Modified in Version	7.12.0
Location	Favorites Designer Entities > Forms [Interaction] > Default

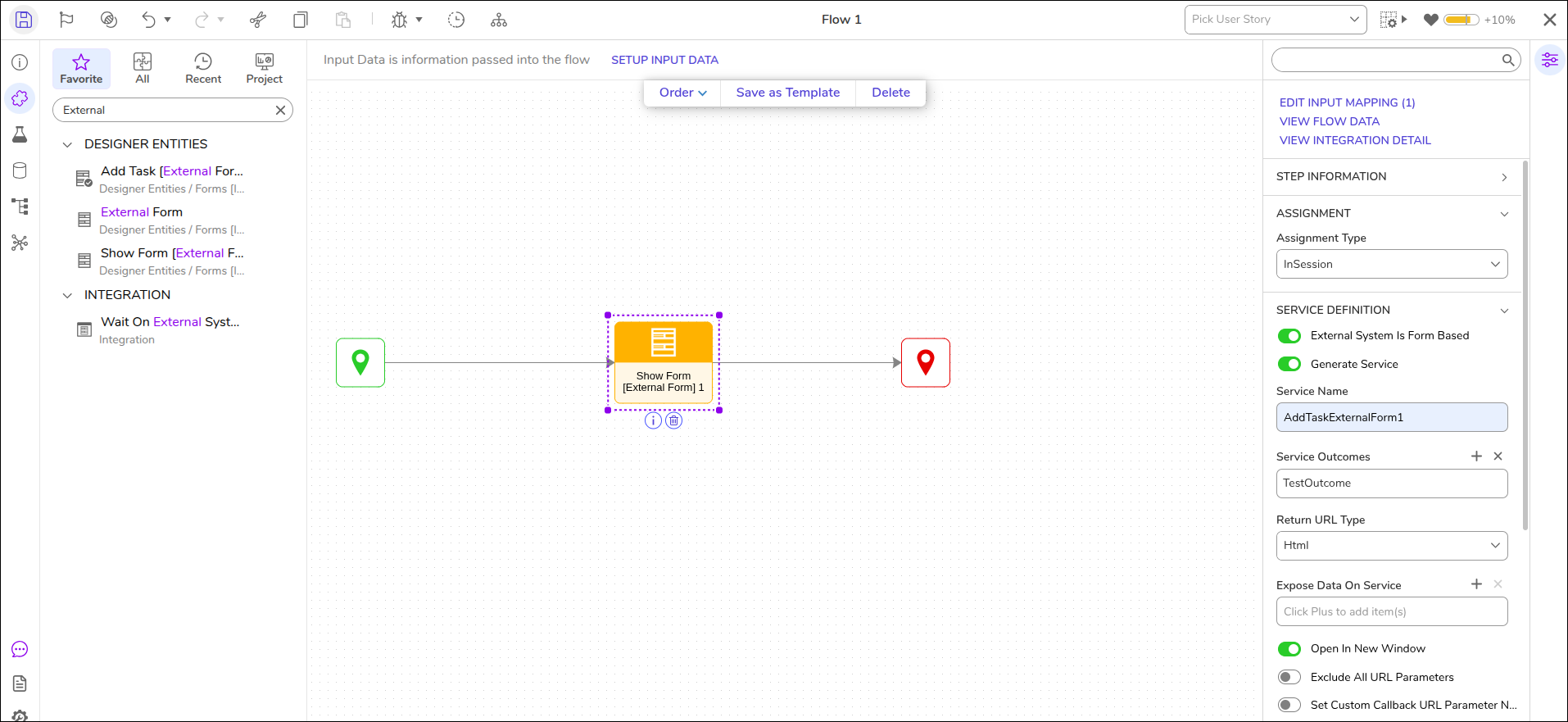

Used to display a Form in Decisions. Users may create a new Form or select a pre-existing one via the Properties panel.

Properties

Property	Description	Data Type
Assignment Type	Select whether the Assignment is InSession, Assigned, Assigned to Guest, or Named Session.	---

Inputs will change based on how the Form is configured.

Property	Description	Data Type
---	---	---

Outputs will change based on how the Form is configured.

Property	Description	Data Type
---	---	---

Property		Description	Data Type
Step Start Flow Type		This setting allows for additional options for Runtime behaviors via the On Step Run section. Such options allow users to define the Step Start Flow Type as either None, SharedFlow, or Private. Triggering one of these options will allow the user to define which Flow To Run and the URL Parameter Name, the Assignment ID, Step Tracking ID, and Flow Tracking Parameters for the Assignment.	---
Specify Queue for Running the Start Flow			Boolean
	Queue Name for Running the Start Flow		---

Property	Description	Data Type
Show Form In	Provides options to show the Form in a Dialog, on the Side Panel, or in a New Window.	---
Runtime Selection Enabled	When set to true, this will show a Target ID as an Input.	---
Pick or Create ---	Select the Default notification policy, choose no policy or create a custom policy.	---
Do Not Allow Resize	When set to true, the end user will not be able to adjust the size of the Form.	---
Form Title Source	This option can override the Form Title displayed with the Form shows.	---
Background Color	Changes background color of the Form	---
Display Options	Settings to provide a message if the assignment was completed. Show or remove the top bar, border, and background. If the Form is displayed in a dialog, set where the Form displays.	---
Sizing	Set sizing options for if the Form is set to open in a New Window or a Sub Dialog.	---

Property		Description	Data Type
Email Notifications
	Notification Policy	Select the Default notification policy, choose no policy or create a custom policy.	---
Email Response Handling
	Get Email Address From Inputs	Retrieve the Email Address from the Inputs of the step.	Boolean
	Email Template	Email Templates are HTML documents that define the look and feel of Emails sent from a Flow.	---

Property		Description	Data Type
Make Auto Resume		The Expiration and Auto Resume Form properties allow Forms to be suspended, tasked for continuation, and automatically resolved with specified Flow outcomes.	Boolean
	Save Data	Choose to save data Immediately or OnAssignment.	---
	Make Auto Resume Delay
	Auto Resume Expires	Expire Type and Expire Auto Resume Delay settings will be available when set to True. Will also add an "Auto Resume Timeout" outcome path to the External Form step.	Boolean
