Setting up SSO for Multi Tenant Environment
- Updated on 04 Jan 2023
- 3 Minutes to read
- A metadata URL
- Account created and assigned to Okta URL
- SAML Module installed. To learn more about installing modules, see Installing Modules in Decisions.
- A public-facing IP is needed for users to log in from a different VM.
- In the OKTA SAML settings, ensure that the Single sign-on URL is configured as http://[Name of server]/[Name of Control Instance]/SAML/AssertionConsumer.
- Uncheck the option. Allow this app to request other SSO URLs.

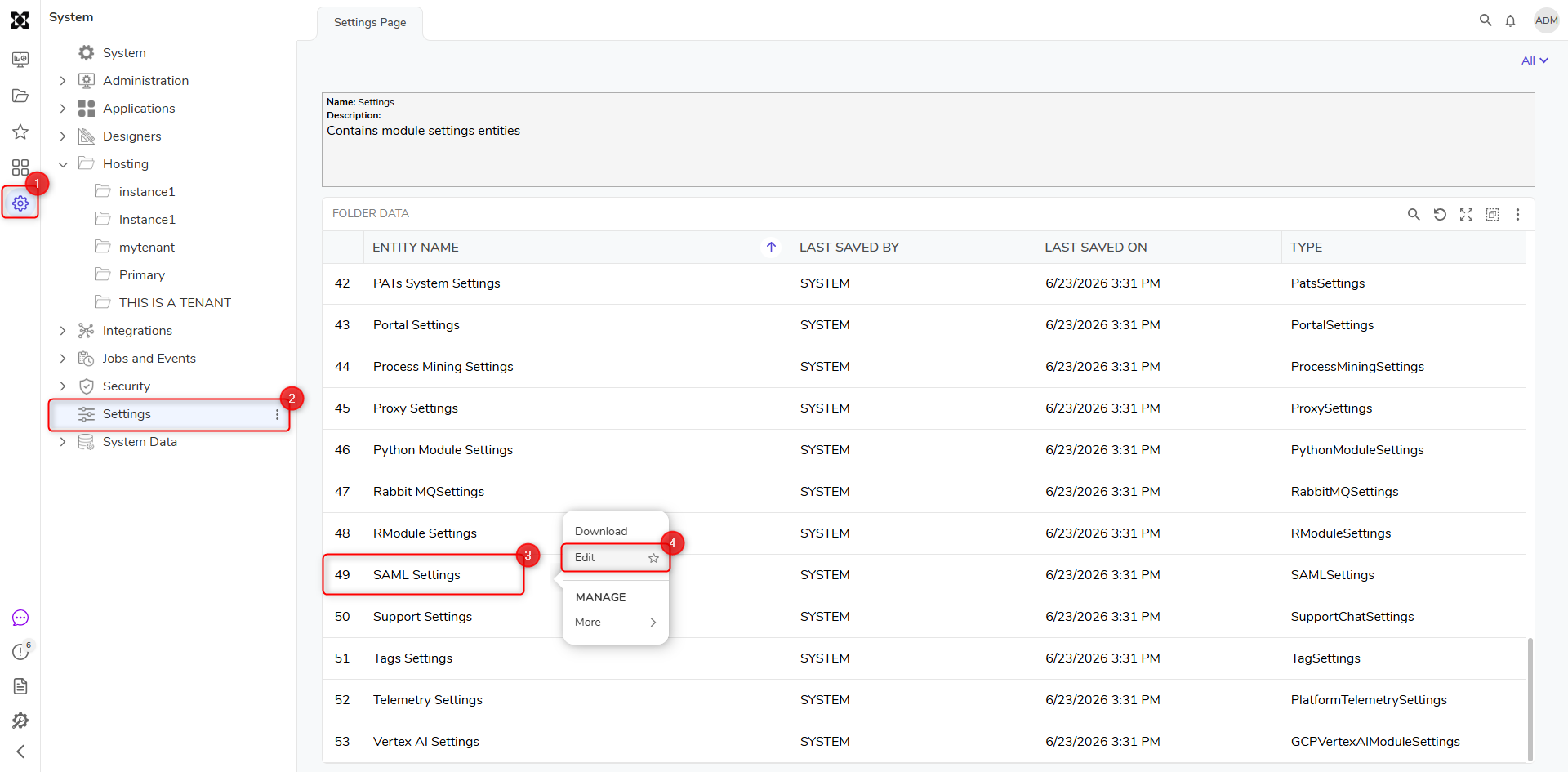

- In Decisions Studio, navigate to System > Settings, right-click SAML Settings, and select Edit.

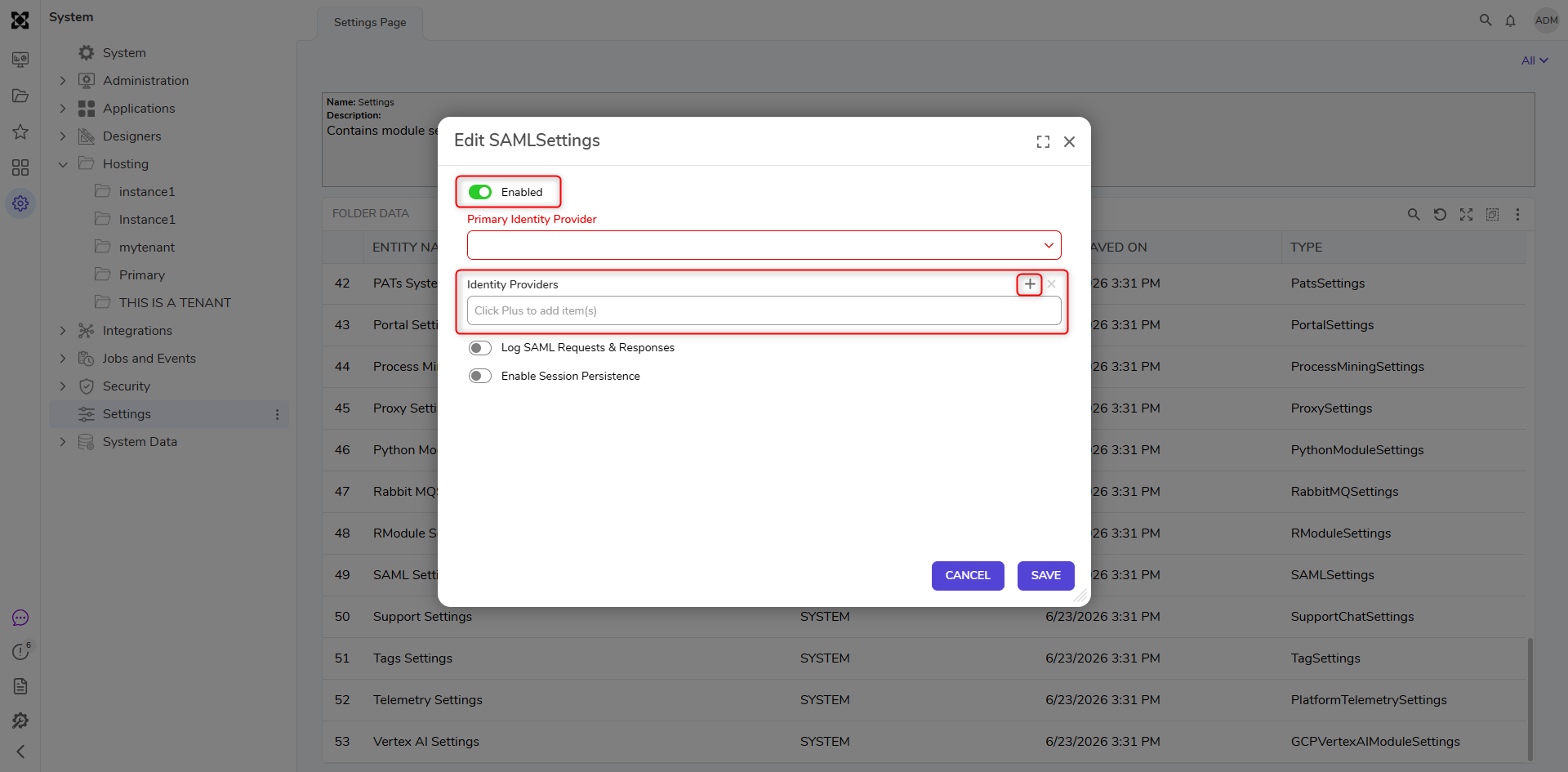

- From the Edit SAML Settings window, check the Enabled box. Then, under Identity Providers, click ADD.

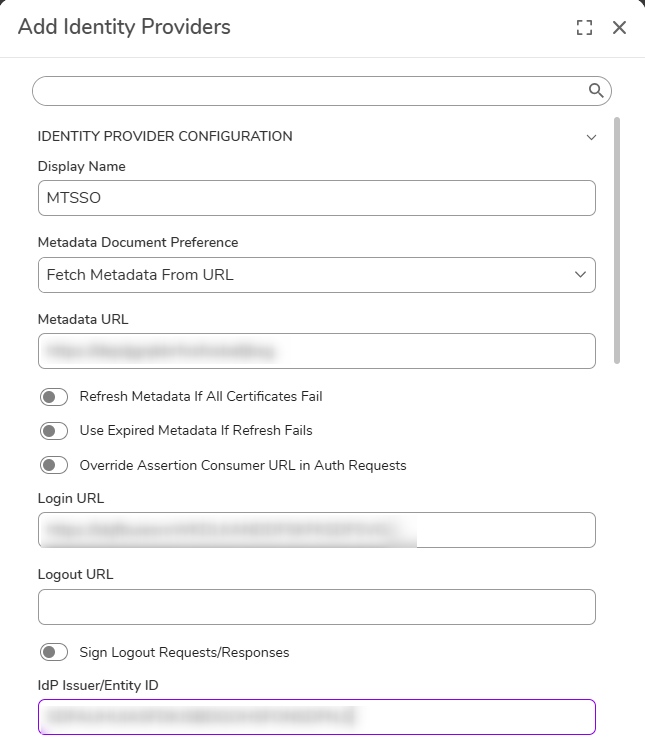

- From Add Identity Providers, provide a Display Name. Under Metadata Document Preference, select Fetch Metadata From URL. Then, map the applicable Metadata via the chosen method. The Metadata URL is a required input. Providing it will automatically fill in all fields of the Module except for the SP Issuer ID, which is the Portal Base URL.

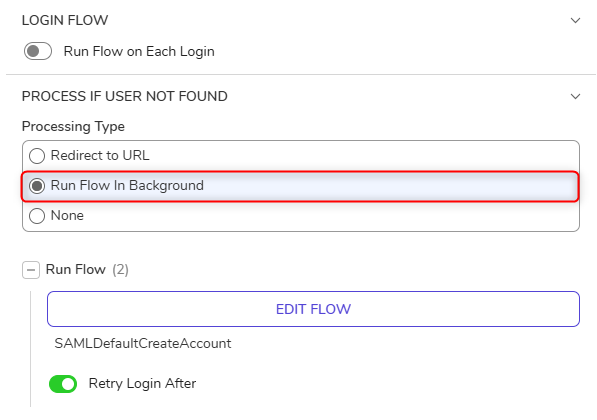

- Under the PROCESS IF USER NOT FOUND category, select Run Flow In Background. Under Run Flow, click PICK OR CREATE FLOW and pick SAMLDefaultCreateAccount.

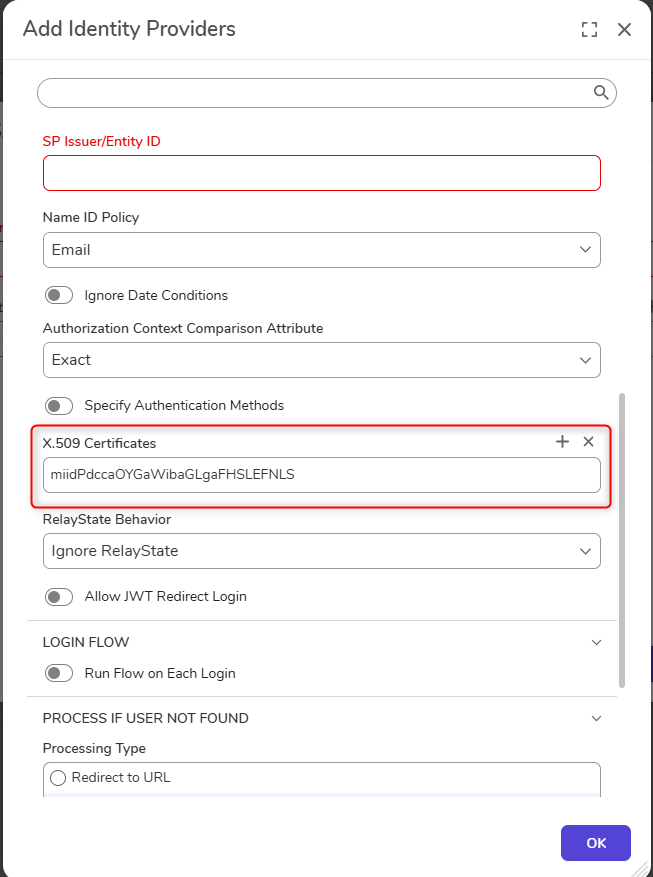

- If manually configuring the module, click ADD under X.509 Certificates, and add a valid x509 Certificate. Click OK. If the metadata URL were used, the X.509 certificate would automatically be pulled. For more information on x.509 Certificates, see What is an x509 Certificate?
- Click OK.

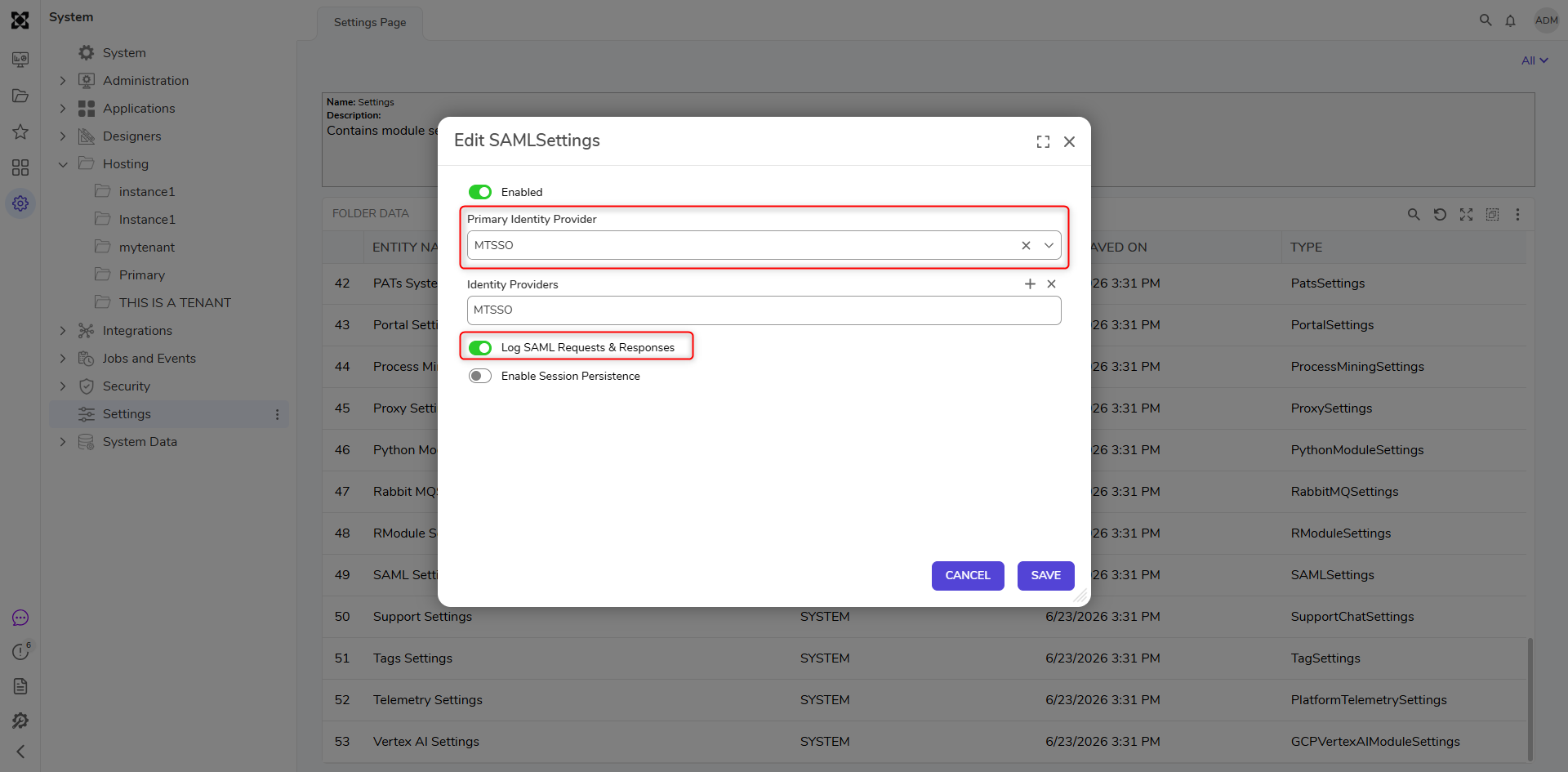

- In the Edit SAMLSettings window, select the newly added Identity Provider from the Primary Identity Provider list. Select the Log SAML Requests & Responses option and click SAVE. These requests and responses are kept in a set of logs called SAML found at C:\\Program Files\Decisions\Decisions Server\Logs.
- Navigate to C:\Program Files\Decisions\Decisions Server and open the Settings.xml in a Text Editor.
- Locate the <EnableSingleSignOn> line and change the false value to true. Save and close the file.
- Restart the Decisions Server.
- Continue testing on an Incognito Session; use the first open session to uncheck the Enabled button in the SAML module should something not work. This saves users from setting EnableSSO to false and restarting the Decisions Server again.
If a user wants to convert a local account to a SAML/SSO account or if a user receives errors when updating the User Identifier:
- Modify the UserID of the account
- Use SQL to modify the entity_account table and change the type of account
- Create a new account after SAML has been turned on and add it to the admin group
If the redirect is working only on a refresh of the initial login:
- Check the Retry on Log-In checkbox
- Ensure “/Login” is at the end of the Sign-On URL (case-sensitive)
When there is a "Context can only be used from localhost" error:
- Add the IP/Domain to <LoginAllowedIPs></LoginPageAllowedIPs> in the Settings.xml file
