Containers Overview

  • Dark
    Light

This article includes a brief introduction to the following topics,

  • Container and its importance
  • Container Orchestration (AKS & EKS)
  • Using Decisions in Container

Container

A container is a package that contains the code, configurations to the code, and all its dependencies to run the application or service within an isolated environment. Containers are based on Linux architecture. A container can be launched by pulling and running the Container Image. A Container Image is a static file that includes the executable code to run the container. Container Image becomes container during runtime. Container Images are stored in a private or public registry on a cloud Repository like Docker Hub, Amazon's Elastic Web Services, Azure Container Instances, etc.

To learn more about Containers, refer to the article by Docker.

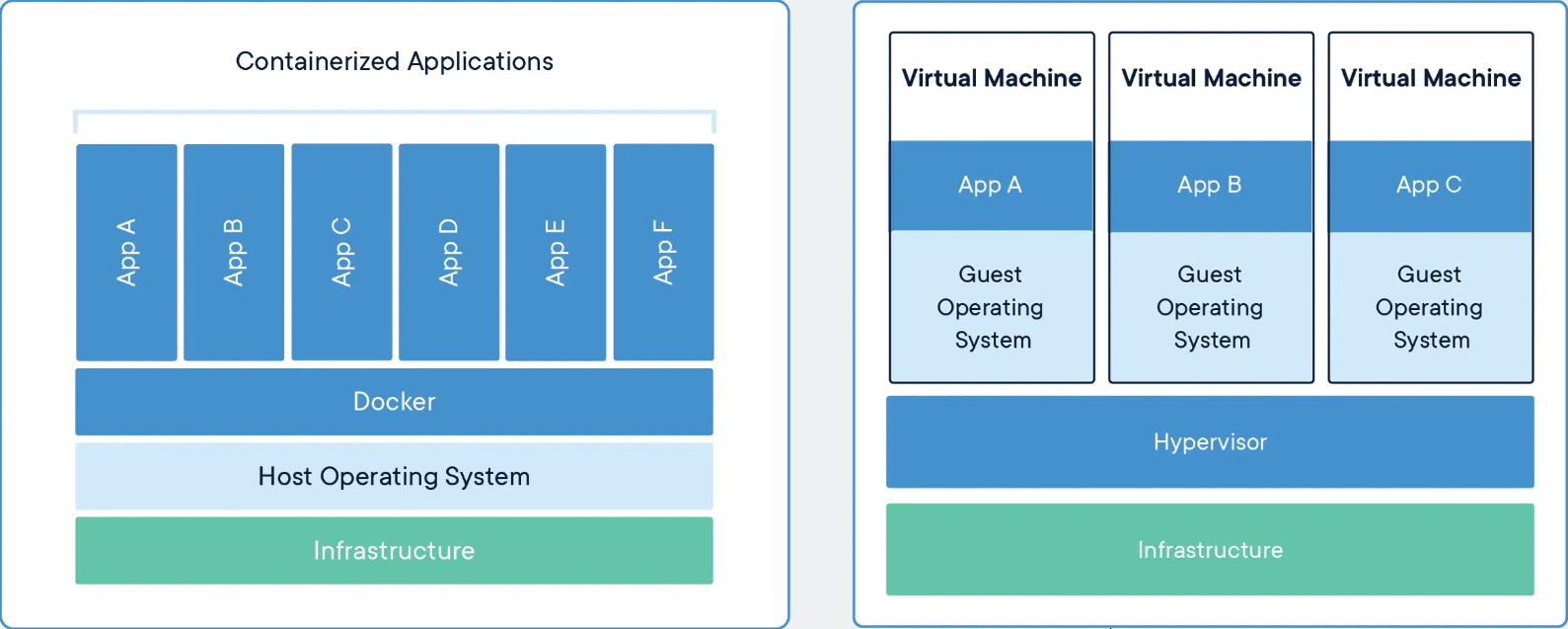

How is Container different from Virtual Machine (VM)?

Container and VM have the same goal to run the application or service in an isolated environment.

Image credit - docker.com
  • Virtual Machine (VM)

    VMs or Virtual Machines uses hardware virtualization of the host computer. Hardware Virtualization is an abstraction of physical hardware (Ram, Memory, CPU, etc.) from the host machine to create another machine. It needs an operating system and a Kernel of its own.

  • Container

    Container, on the other hand, uses Operating System virtualization, where it shares the hardware, kernel, and OS of the host computer with other containers. Hence no need to install an operating system in a container. This makes Containers very fast and lightweight.


Why use containers over virtual machines?

The most important use case of an application or a service is its ability to scale within a business unit. Horizontal scaling with the VMs is complex and time-consuming, but with the help of containers, the process becomes easy and quick.


Passing Environment Variable to containers

Users need to configure multiple settings (file storage location, connection string, etc.) while installing an application with the help of an installer. But containers run with predefined configurations set in the container image. Using Environment Variables in CLI or passing the env.list path will help the user to set the dynamic configuration to containers before running the container image as a container.

To learn more about Environment Variable, refer to Environment variables in Compose.


Container Orchestration

Container orchestration is the automated process of deploying, auto-scaling, and managing containers as needed. Orchestration comes into the picture when the containers are running in Cluster. Clustering is a process where multiple containers (even thousands) running simultaneously will use the same database or file storage to run the applications.

Note:
Decisions containers are built to be managed by container services like Kubernetes, Amazon Kubernetes Services, Azure Kubernetes Services, etc.

How does Containers Orchestration work?

Depending upon the orchestration tool, a declarative configuration file is written in YAML or JASON format. This configuration file is written to define the desired configuration state, and the orchestration tool that runs the file uses its own intelligence to achieve that state.

The tool automatically deploys the containers to a host, choosing all the required hardware for the containers specified in the configuration file.

Once the containers are deployed, the orchestration tool manages everything based on the declarative configuration file.


Container Orchestration tools supported by Decisions

Kubernetes

Kubernetes is an open-source and the most popular container orchestration platform used globally. It allows developers to effortlessly create containerized applications and services and scale, schedule, and monitor containers. To learn more about Kubernetes and its configuration, refer to the Kubernetes Official Website.


Amazon's Elastic Kubernetes Service (EKS)

Amazon EKS is a managed Kubernetes Service to run Kubernetes in AWS  cloud or on-premises. EKS is a completely automated platform. EKS is a certified Kubernetes conformant, making it easy to run tooling and plugins developed by Kubernetes. To learn more about EKS, visit Amazon EKS


Microsoft's Azure Kubernetes Services (AKS)

AKS is also a Managed Kubernetes Service similar to Amazon EKS, which is available on the Azure cloud. AKS can be used to handle scaling and managing containers and container-based applications. To learn more about AKS, visit Azure Kubernetes Services.


Using Decisions in Container

Note:
Container images for all Decisions version 8.0 and further have been published to Docker Hub and are publicly available.
Warning:
Decisions Container currently does not support the following Modules,

Architecture Diagram

 Users can deploy Decisions Container on multiple cloud servers or physical premises. There is no hard limit to the number of containers supported by a Decisions installation.


Additional configurations

Below are changes needed for specific modules or features to utilize them for a container.

SAML Module

In the SAML settings, the X.509 certificate requires ----BEGIN CERTIFICATE---— and ----END CERTIFICATE---— otherwise, an invalid certificate error will be thrown.

Document to PDF Steps and WordToPdf module

All Document to PDF Steps and WordToPdf module uses windows font, which is not supported by Linux. Decisions Containers has the ability to load the font from the /customfont folder. To use the windows font in containers, we need to volume map the /customfont.

The windows font can be found at C:\Windows\Fonts, and an easy and quick way to get TrueType fonts on a Linux system is to copy .TTF and .TTC files from the C:\Windows\Fonts to a new directory on the Linux environment and map the directory with /customfont.

Here is an example of the docker run command.

docker run -p [host port]:[container port] --name [CONTAINER_NAME] -v  C:\[FOLDER_PATH]:/opt/decisions/data -v C:\[FOLDER PATH OF .TTF AND .TTC]:/customfont  --env-file="[ENVIRONMENT_FILE_PATH]" [IMAGE_NAME]

Note:
Kindly verify whether font licensing is required, and read the EULA carefully before using the MS Font on the Linux environment.

External Form

Since the file path for a Linux operating system is case-sensitive, ensure that the JavaScript paths for the external Form have the correct casing.


Decisions Agents

The Download Agent button will not download the DecisionsAgent.msi in the container. To retrieve the .msi, it must be downloaded from the release site.


HL7 Module

The HL7 module requires extra ports need to be opened and exposed. This can be done by running the Docker expose commands. Ports can be opened using the following command:

—expose=port_number

Afterward, the port can be published and mapped to the container. The following command does this.

-p portnumber:portnumber

Active Directory

Currently, containers can access all steps in the active directory module except for the Create user advanced and Set Password steps. For logging into a container using an AD account. The user must enter the domain name along with the username. (domainName\userName)


Setting up Environment Variable

Decisions has predefined environment variables to configure the settings while running the container. Some of them are required, and some of them are optional. Refer to the Creating Environment List File article to configure all the environment variable lists.

Refer to the following articles for deploying Decisions on Docker, Azure, AWS, and GCP.


Deploying Decisions Container in Clustering (EKS & AKS)


For further information on Installation, visit the Decisions Forum.
