Generate Truth Table With AI

Overview

This document explains how to use the Generate Truth Table with AI functionality inside the platform. This feature allows you to generate a Truth Table with an AI Assisted Chat Experience.

Disclaimer: AI Features Can Make Mistakes

When generating a designer item, please be aware that LLMs/AI make mistakes and can experience issues. Users should understand that all items generated need to be reviewed and tested before being used in production.

Can/Cannot

Each of the AI features have capabilities that they can do and capabilities that they cannot do. As these features get continue to improve, the list below will change. As of v9.16 this is what the feature can and cannot do:

Can

Add columns, rows, and output data
Set row data
Set "Has No Match Outcome Data"
- As well as Enable and Disable this
Add inputs
Set values to be "null", "ignore" or "pick from data"

Cannot

Use converter Flows on data points inside the Truth Table
Use action Flows
Generate Formulas or use Formulas in Truth Tables
Ability to use composite structures, custom types, or file types
Truth Tables cannot be iterated

Generate From AI

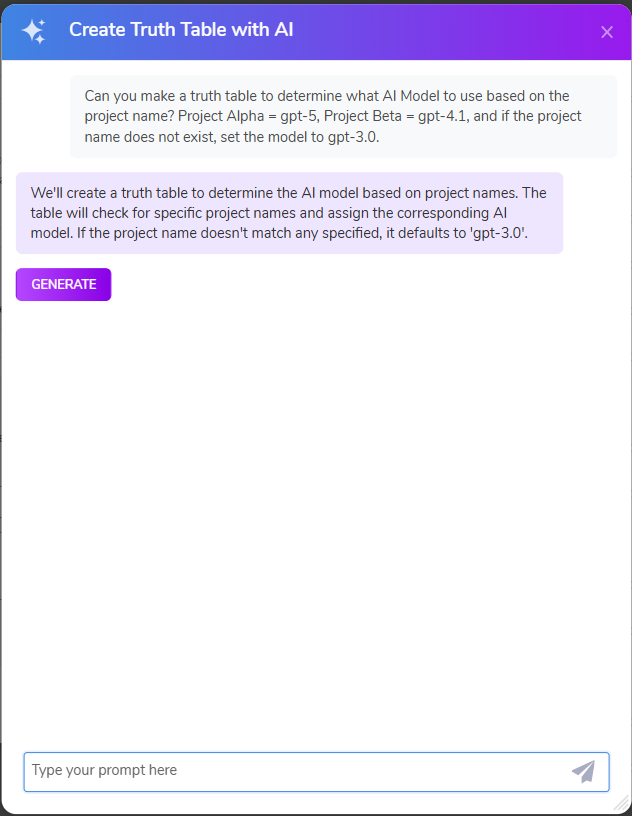

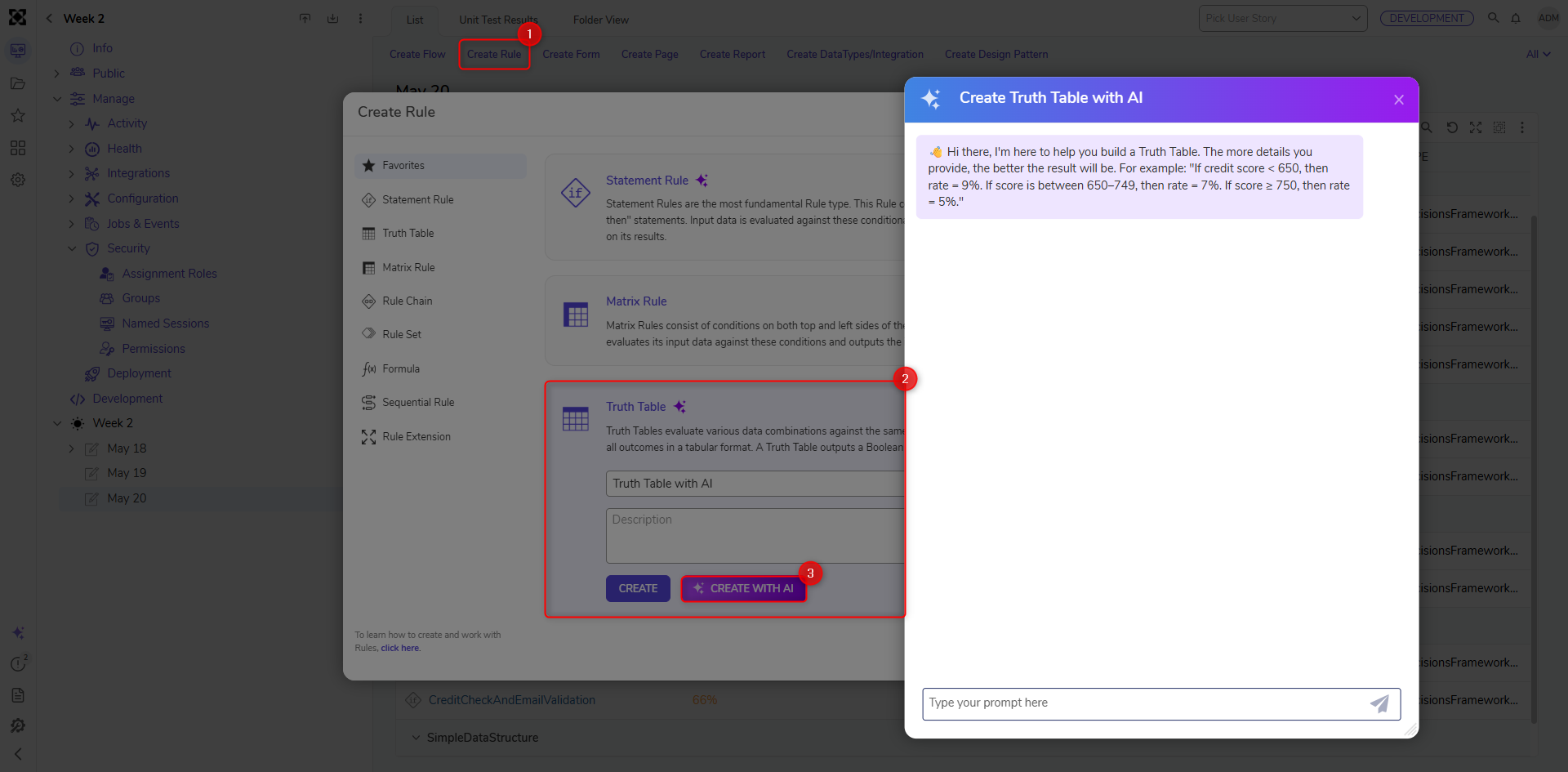

To use this feature, initiate the creation of a Truth Table. A button called "Create With AI" will be available. Once clicked, a chat window will appear where users can request the Truth Table to be created.

Once a request has been made, the AI will ask any follow-up questions it may have, and if not, it will provide a button titled "Generate". This button will create the Truth Table given the specific requirements discussed in the chat experience.

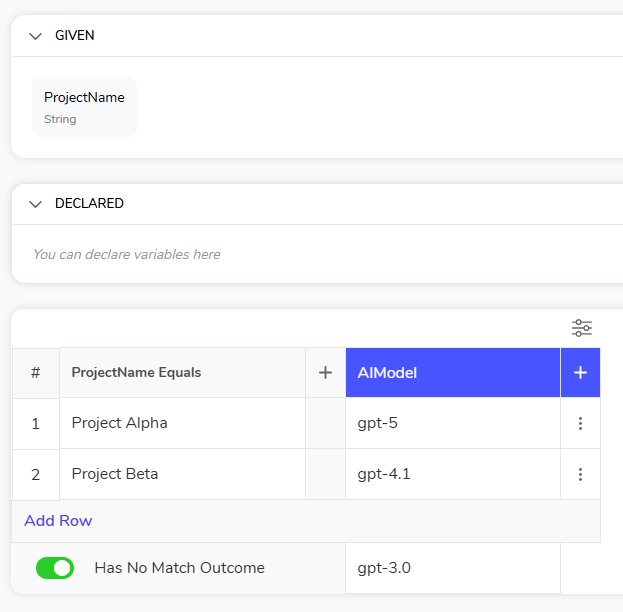

The Truth Table that is generated will look like the following:
