Overview
Module Details | |
| Core or Github Module | Core |
| Restart Required? | No |
| Steps Exposed | Yes |
| Step Location | Amazon AWS > Elastic Load Balancer |
| Settings Location | Settings must be defined for each step |
| Prerequisites |
|
As part of the AWS Module offerings, Elastic Load Balancers (ELB) can be utilized in Flows to deregister/register target instances and describe current groups handled by a particular ELB.

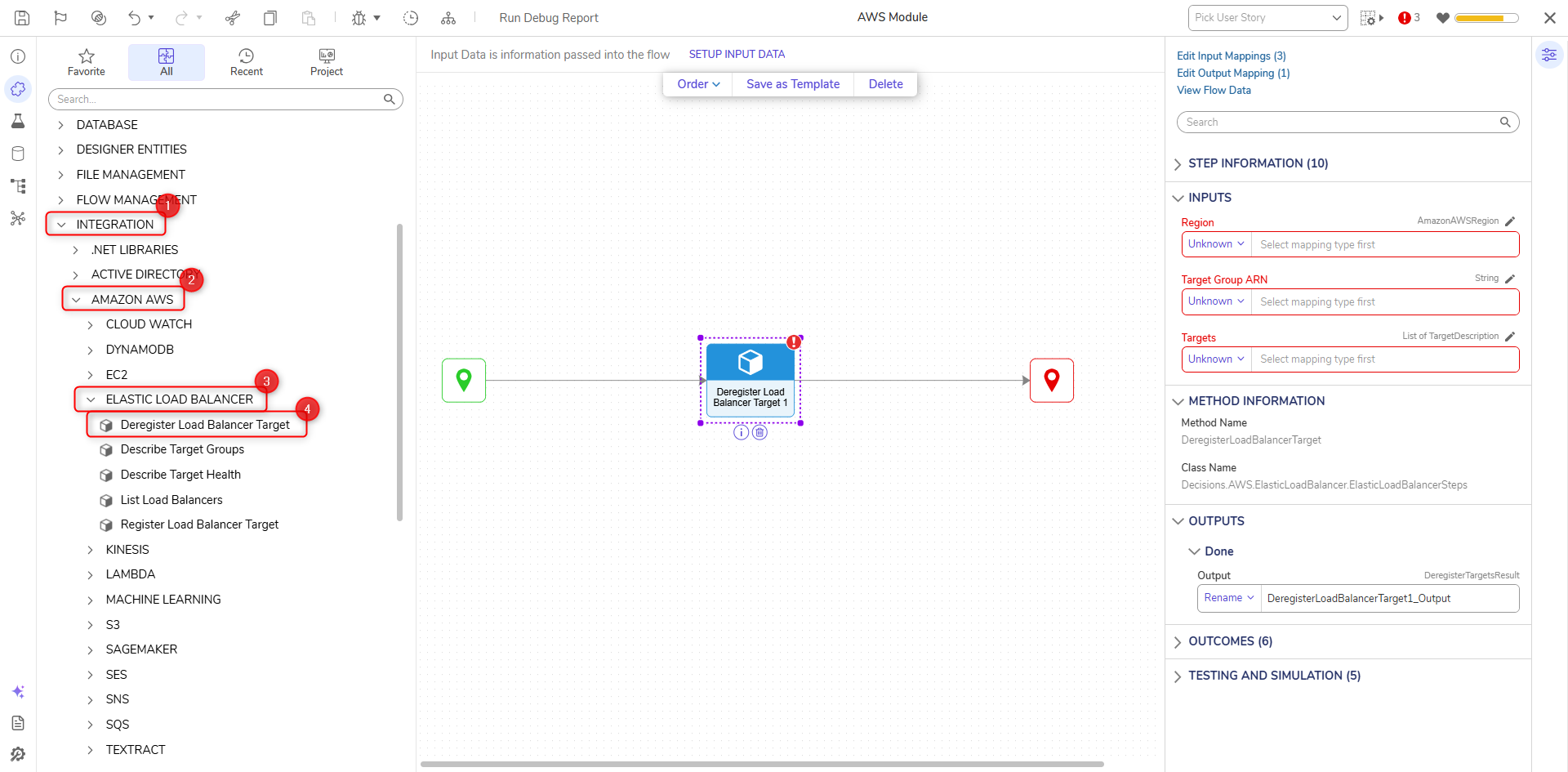

Deregister Load Balancer Target
The Deregister Load Balancer Target step removes listed instances from being handled by the load balancer.
| Inputs | Description |
|---|---|
| Region | Determines which AWS Region that will be searched by the request |
| Target Group ARN | The Amazon Resource Name (ARN) of the targets |
| Targets | Lists the targets that will be removed from the load balancer. |

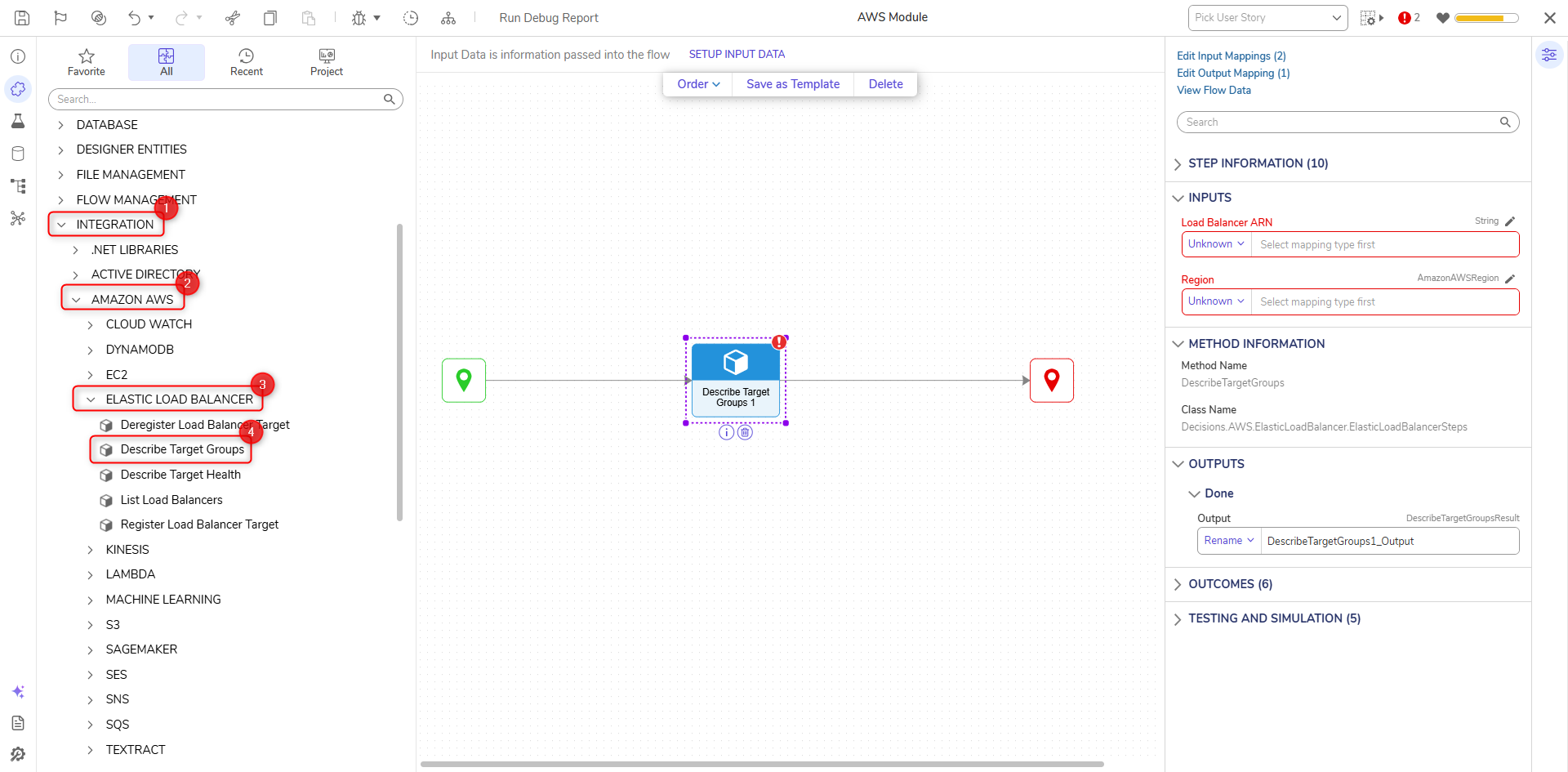

Describe Target Groups
The Describe Target Groups step lists all instances utilized by a load balancer.
| Inputs | Description |
|---|---|
| Load Balancer ARN | The Amazon Resource Name for the load balancer where the information is being pulled from. |
| Region | Determines the AWS Region that will be searched for the request. |

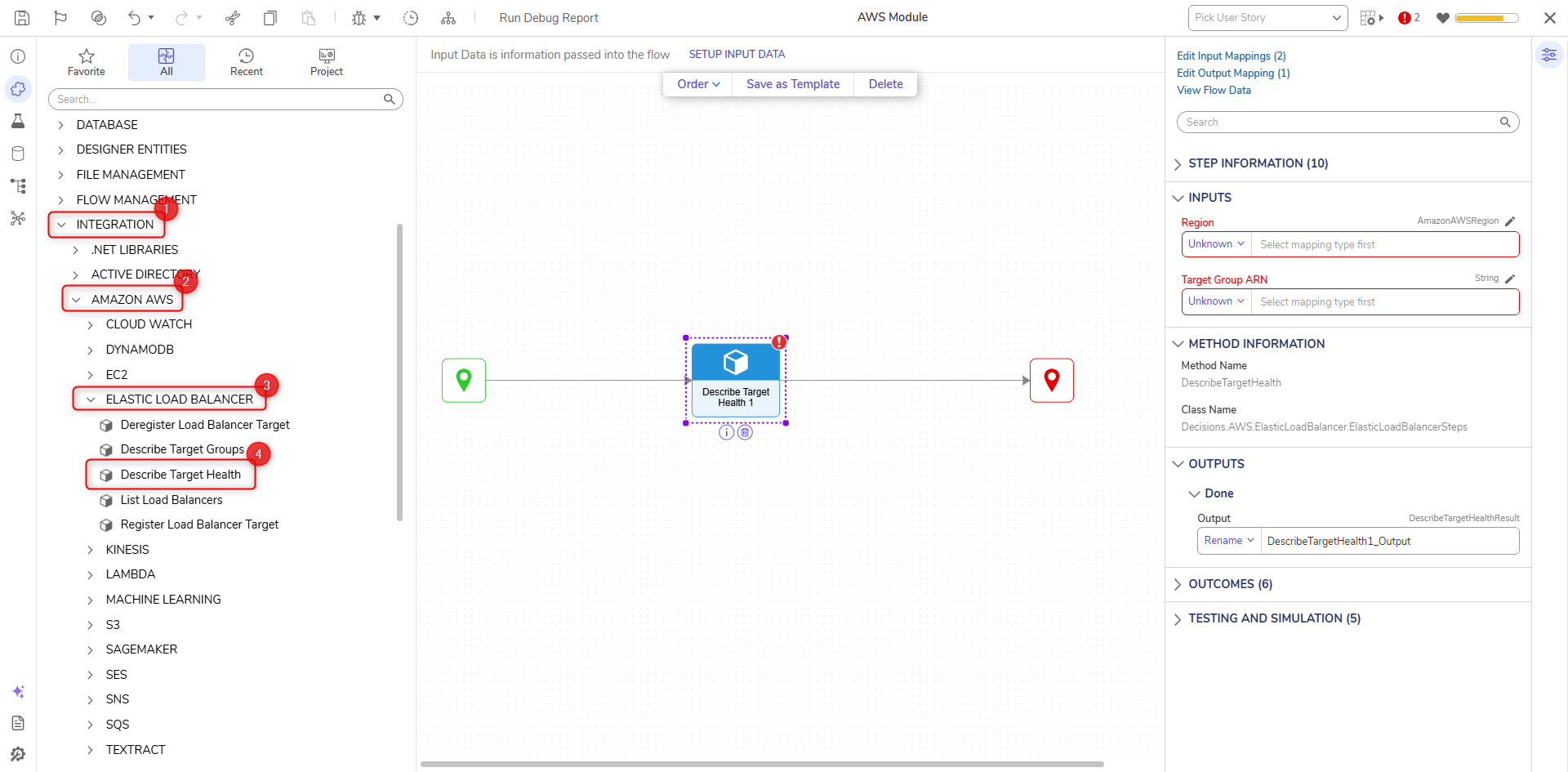

Describe Target Health
The Describe Target Health step provides information on the target instance current state and health.
| Input | Description |
|---|---|
| Region | Determines the AWS Region that will be searched for the request. |
| Target Group | The Amazon Resource Name (ARN) of the targets. |

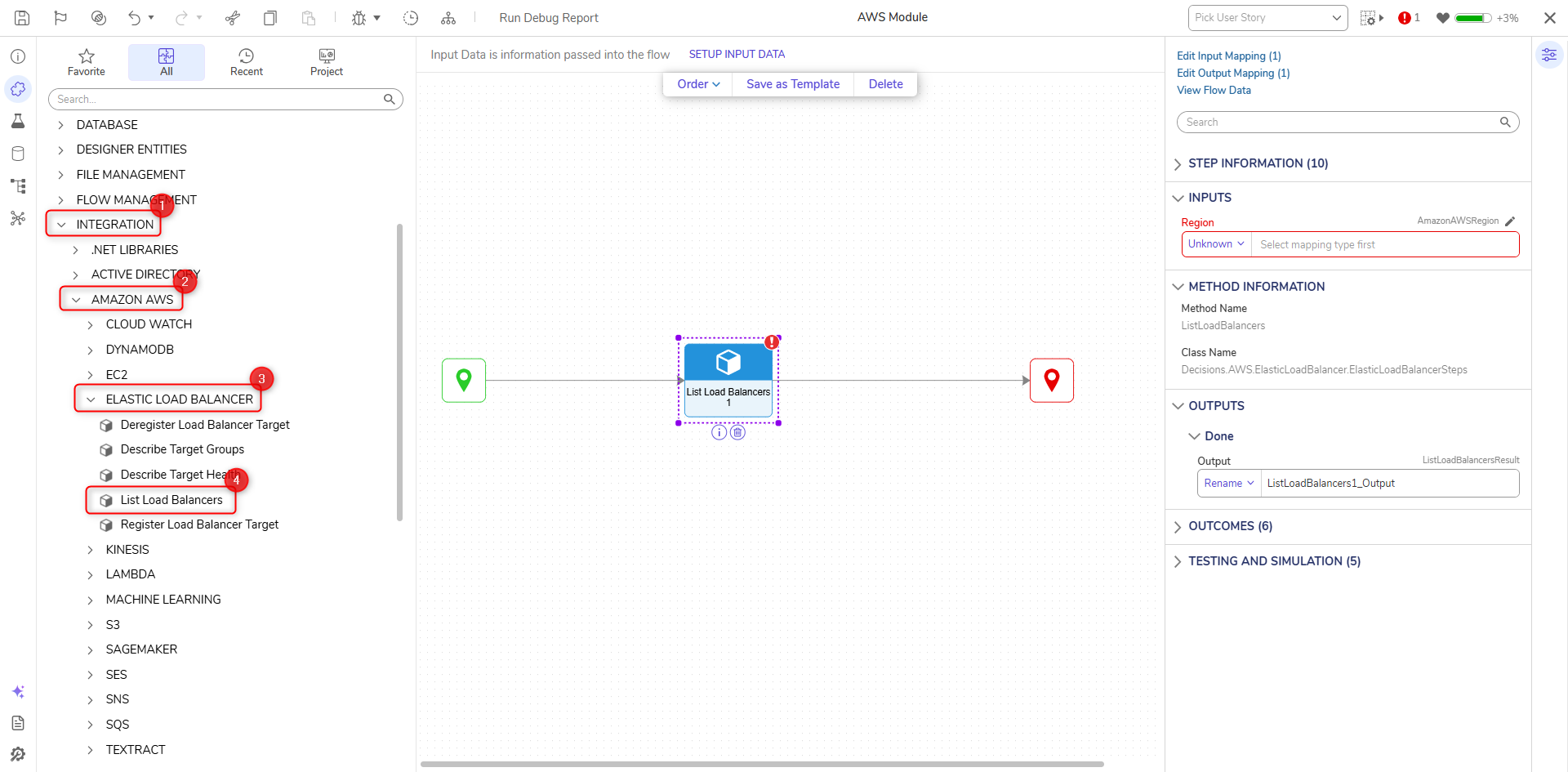

List Load Balancers
The List Load Balancers step lists all Load balancer environments for a given region.
| Inputs | Description |
|---|---|
| Region | Determines the AWS Region that will be searched for the request. |

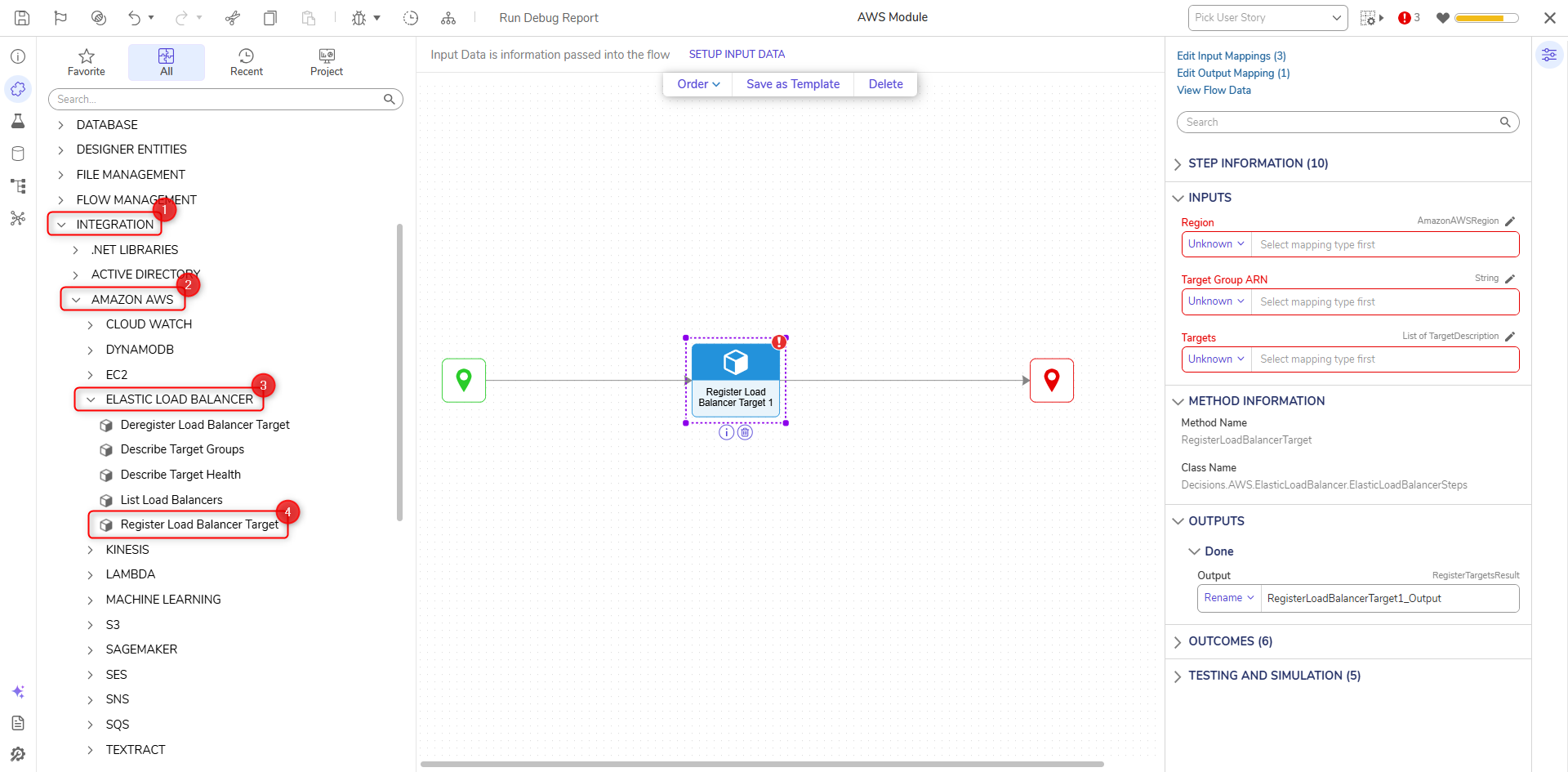

Register Load Balancer Target
The Register Load Balancer Target step allows users to add new target instances to be handled by the a load balancer.
| Inputs | Description |
|---|---|
| Region | Determines which AWS Region that will be searched by the request. |
| Target Group ARN | The Amazon Resource Name (ARN) of the targets. |
| Targets | Lists the targets that will be removed from the load balancer. |
For further information on Modules, visit the Decisions Forum.
