Overview

The Open API/Swagger Service allows developers to create and manage REST services by leveraging the OpenAPI specification. OpenAPI, formerly known as Swagger, is a widely adopted format for describing APIs, where specifications are written in YAML or JSON. These specifications provide a comprehensive description of the API, including:

  • Endpoints: The different paths available in the API.
  • Operations: The actions that can be performed on each endpoint (e.g., GET, POST).
  • Parameters: Input and output parameters for each operation.
  • Authentication Methods: The required authentication mechanisms to access the API.
  • Contact Information: Details about the API provider.
  • Licenses and Terms of Use: Legal information regarding the usage of the API.

This article will walk through creating an OpenAPI service using the Pet Store API provided by Swagger as an example. For further details on OpenAPI specifications, visit the official documentation.


Example

This example uses the prebuilt Pet Store API from Swagger using this URL: https://petstore.swagger.io/v2/swagger.json

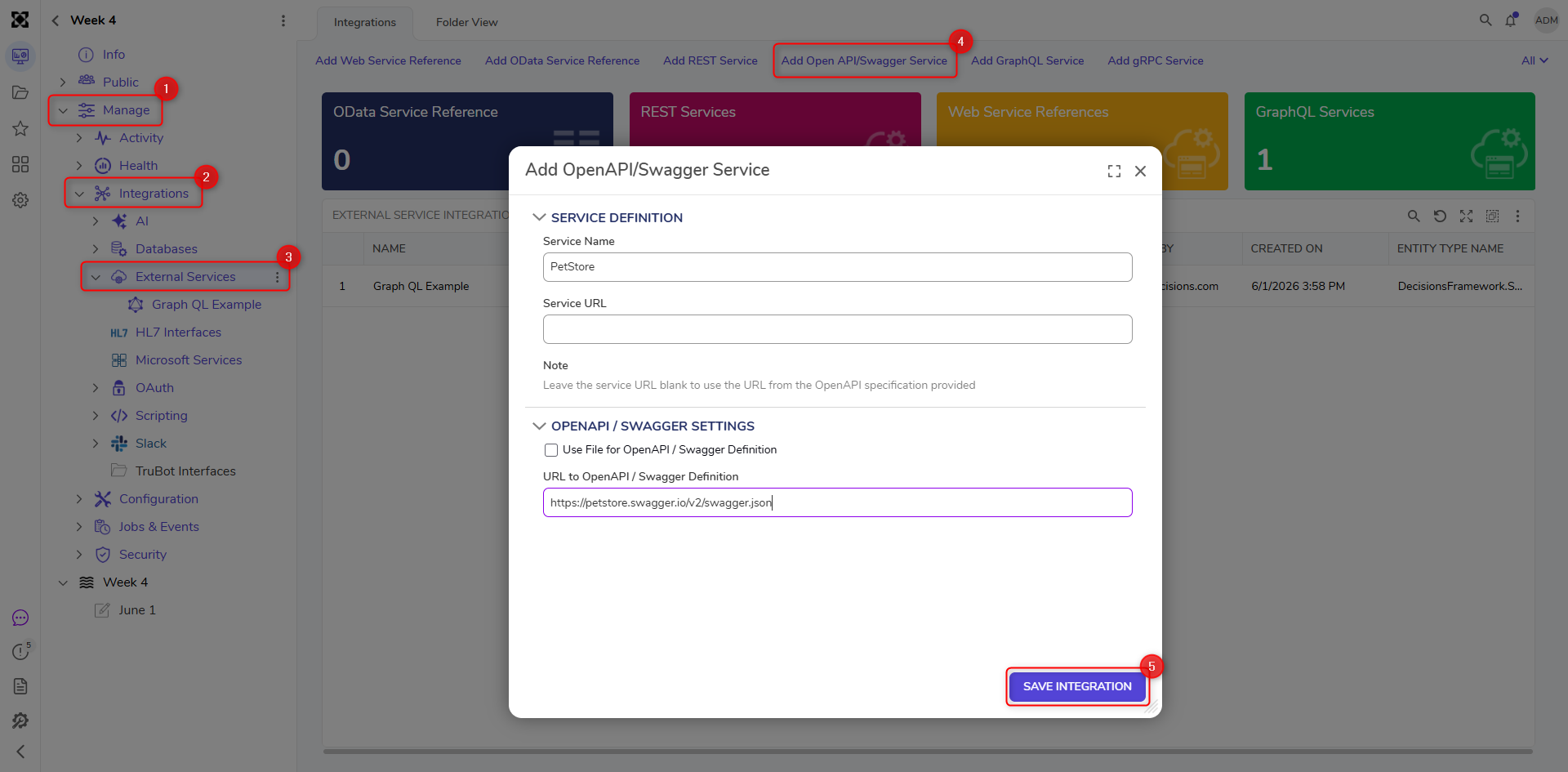

  1. In a Project, within the Manage > Integrations > External Services folder, select the ADD OPEN API/SWAGGER SERVICE button from the top Action Bar.
  2. In the Add OpenAPI/Swagger Server dialog, provide a Service Name, Client Name, and URL or file.
  3. Select SAVE INTEGRATION.
    SettingDescription
    Service NameProvide a meaningful name for the service; once the service has been generated, this name can not be changed.
    Service URLProvide a service URL, or leave this field blank to use the URL from the OpenAPI definition provided.
    Use File for OpenAPI/Swagger DefinitionSelect this checkbox to show a file upload area for uploading the OpenAPI/Swagger Definition JSON or YAML file.
    URL to OpenApi/Swagger DefinitionProvide the URL for the OpenAPI/Swagger Definition. For Example: https://petstore.swagger.io/v2/swagger.json

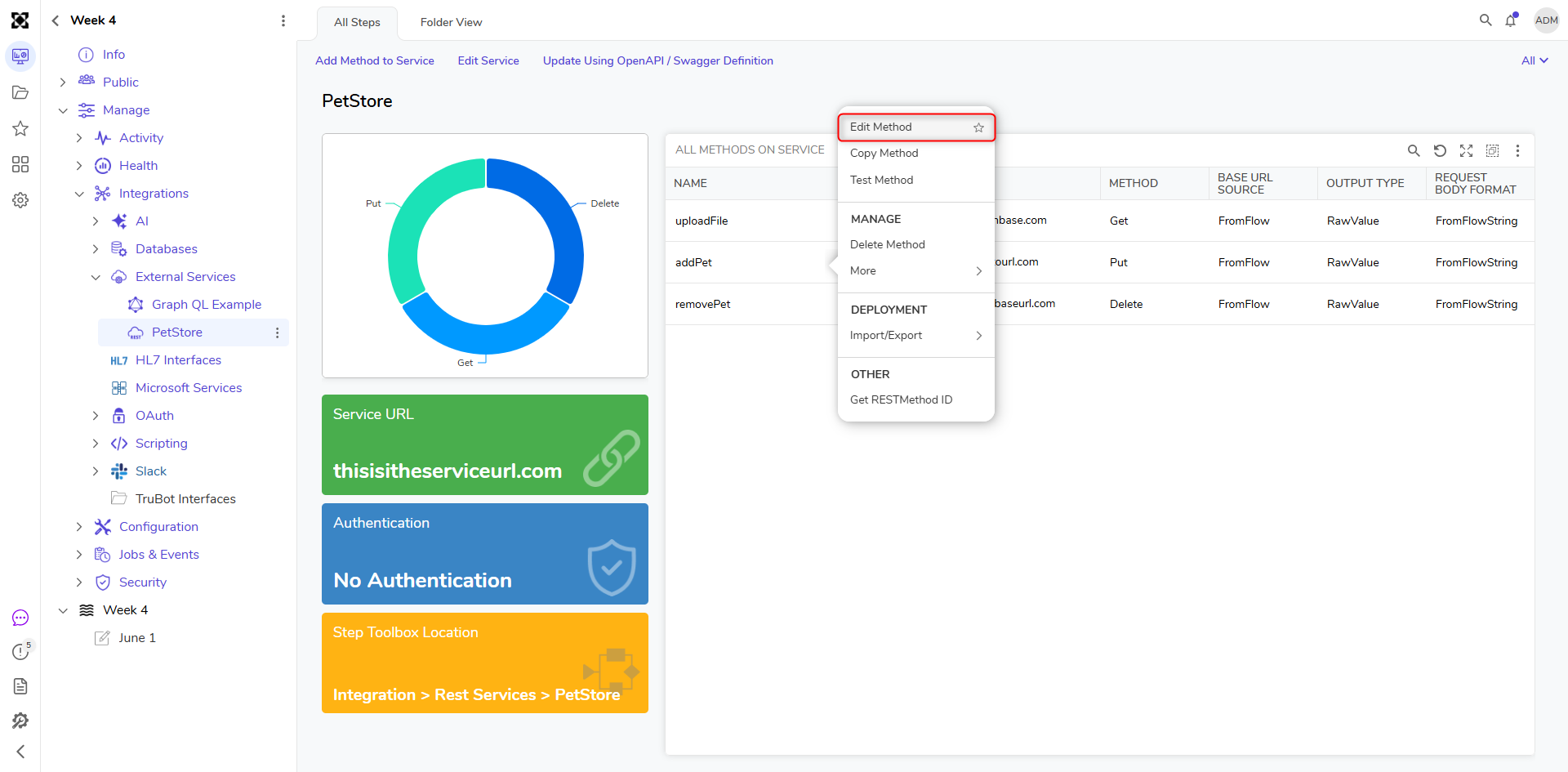

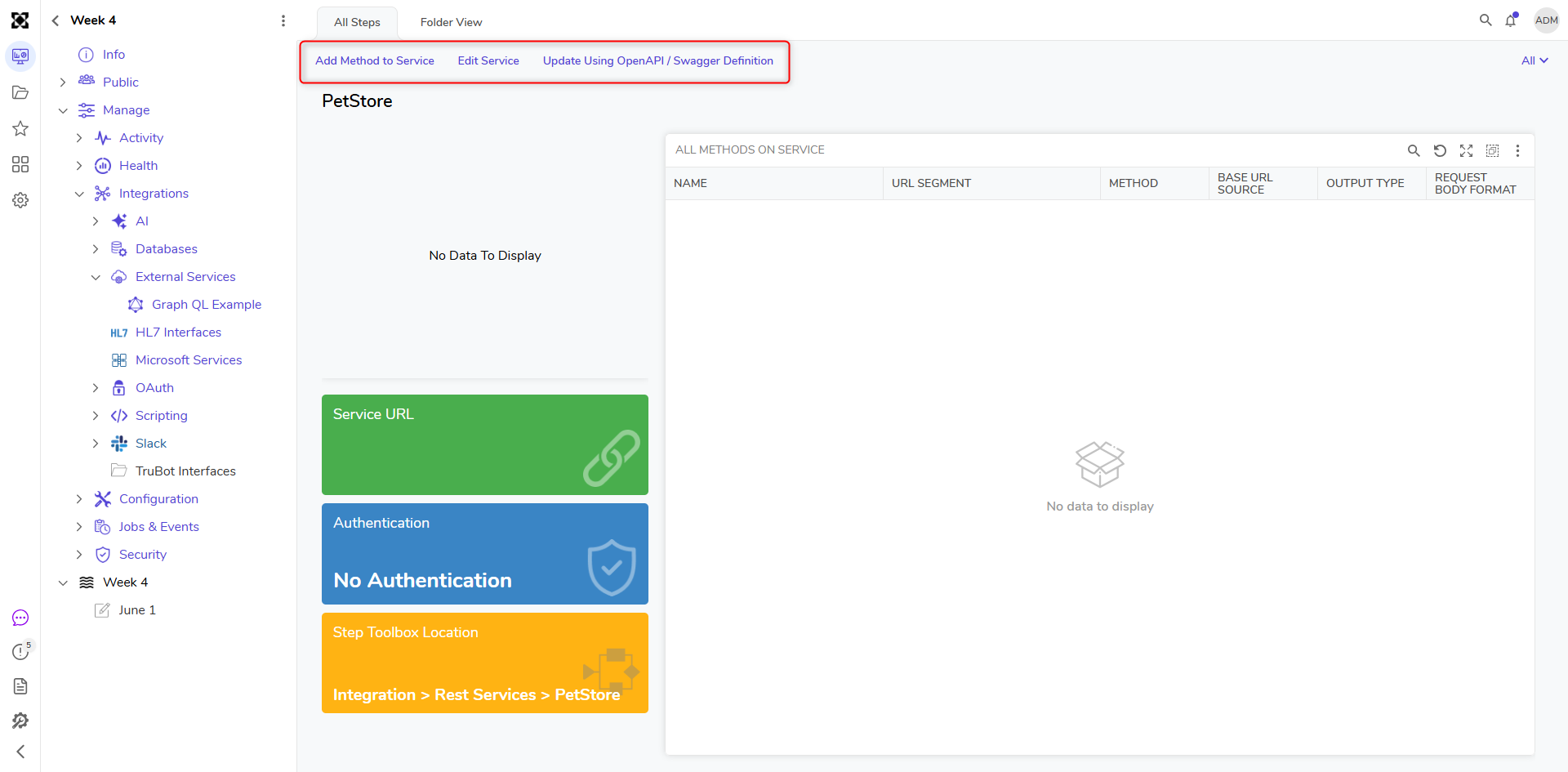

  4. If the integration is successful, a new folder named after the Service Name will be created. From this folder, you can add additional methods, configure the service further, and update the service using the OpenAPI/Swagger definition.
    Folder ActionsDescription
    Add Method to ServiceManually add additional methods to the service. Updating the service using OpenAPI will not impact these methods.
    Edit ServiceConfigure the service by providing Authentication methods and HTTP headers.
    Update Using OpenAPI/Swagger DefinitionUpdate the Service URL and OpenAPI/Swagger Settings to update the methods added from this service. This update will not impact manually added or copied methods from original OpenAPI-generated methods.

Using Generated Methods

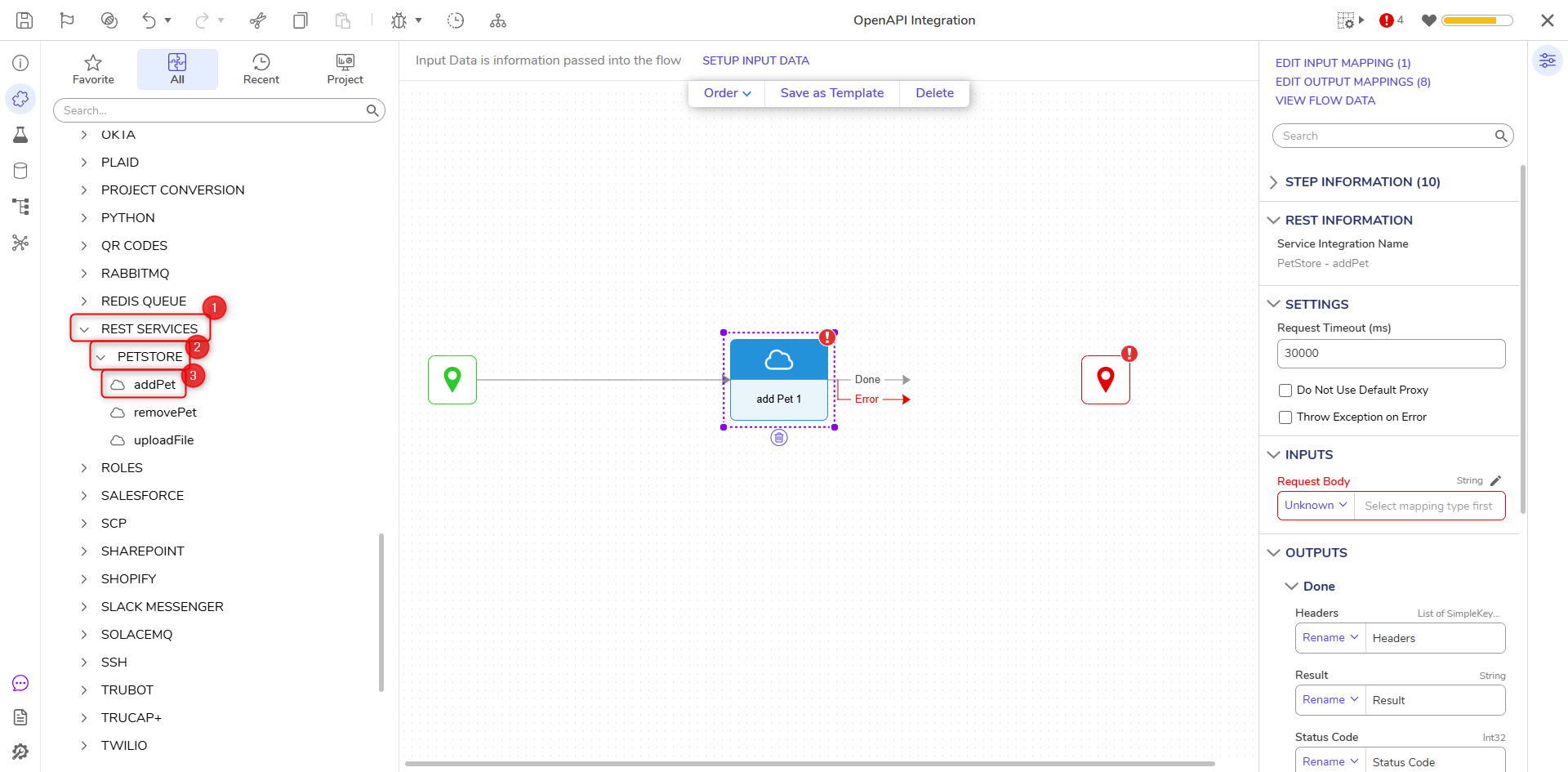

  1. Open or create a Flow. In the Flow Designer, expand the INTEGRATION > REST SERVICES in the steps Toolbox.
  2. Expand the Service Name for this API [PETSTORE] to see all available steps that can be implemented into a Flow.

Troubleshooting

Type Generation from JSONSchema

The Add OpenAPI/Swagger Service feature generates types from the provided URL or file by using JsonSchema. Since JSON is not type-safe, data may not be properly defined, and attempting to connect to a poorly structured service can cause Decisions Services to crash.

Solutions

Ensure the API definition file is well-structured and adheres to the OpenAPI specification. Use tools like the Swagger Editor to validate your JSON or YAML file.
